Preventing Concrete Cracking Properly: Complete Guide to Durable Construction
Key Takeaways
- Concrete cracking can be minimized to less than 0.3mm width through proper mix design, maintaining water-cement ratios below 0.45, and implementing control joints every 24-30 feet
- Temperature control during placement is critical – avoid pouring when ambient temperatures drop below 35°F or exceed 90°F without protective measures
- Proper curing for a minimum of 7 days at 70°F maintains 95% of the concrete’s potential strength and significantly reduces shrinkage cracking
- Strategic placement of control joints at 1/4 slab thickness depth prevents random cracking and directs stress relief to predetermined locations
- Early detection and repair of hairline cracks within 48 hours using epoxy injection can prevent structural deterioration and extend concrete lifespan by 15-20 years
Concrete cracking affects 85% of structures within their first five years, creating costly headaches for property owners and construction professionals alike. These seemingly minor fissures in concrete surfaces can quickly escalate into major structural issues, with average repair costs ranging from $15,000 to $50,000 per commercial project.
Understanding how to prevent concrete cracking properly isn’t just about aesthetics—it’s about protecting your investment and ensuring the long-term structural integrity of concrete structures. Whether you’re working with a concrete slab, managing concrete placement, or overseeing large-scale construction projects, the techniques outlined in this comprehensive guide will help you minimize cracking and extend the lifespan of your concrete surfaces.

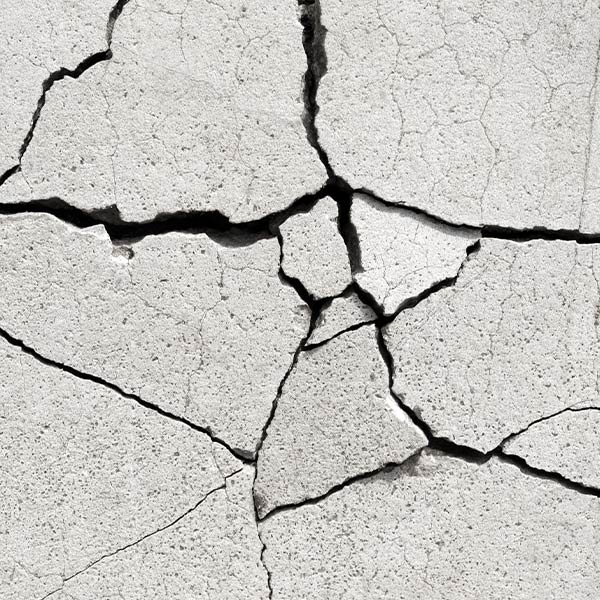

Understanding Concrete Cracking Fundamentals
Concrete cracking occurs as a natural response to various stresses that develop within concrete structures during and after the concrete finishing process. While eliminating all concrete cracks is impossible, understanding the mechanics behind crack formation enables construction professionals to implement effective prevention strategies.
The distinction between structural cracks and cosmetic surface defects is crucial for determining appropriate response measures. Structural cracks exceeding 6mm in width typically indicate serious issues requiring immediate professional attention. In comparison, hairline cracks under 1mm may be primarily cosmetic concerns that can be addressed with standard repair methods.
The timeline of crack development follows predictable patterns, beginning during the plastic stage within the first 4 hours after the concrete is placed. During this critical period, rapid moisture loss from fresh concrete can create plastic shrinkage cracks that appear as the concrete sets. The hardened state, which begins around 28 days after placement, presents different challenges as drying shrinkage and thermal movement continue to affect the concrete for years.
Economic considerations make crack prevention particularly important for commercial projects. Beyond immediate repair costs, concrete cracks allow water seepage that can compromise the soil beneath foundations, leading to settlement issues and further deterioration. The American Concrete Institute estimates that preventive measures cost roughly 10% of reactive repairs, making an upfront investment in proper techniques highly cost-effective.
Primary Causes of Concrete Cracking
Shrinkage-Related Cracking
Plastic shrinkage represents the most common cause of early concrete cracks, occurring when moisture evaporates from concrete surfaces faster than bleeding water can replace it. This typically happens during the first 6 hours after placement, especially under conditions of high temperatures, low humidity, or strong winds that accelerate surface drying.
Drying shrinkage develops over a much longer timeframe, continuing for 1-3 years as concrete reaches moisture equilibrium with its environment. This gradual process causes the concrete mix to contract, creating tensile stresses that can exceed the concrete’s relatively low tensile strength. The water-cement ratio plays a critical role here—higher ratios result in greater shrinkage as excess water evaporates.
Thermal Movement and Environmental Factors
Thermal expansion and contraction create significant stresses in restrained concrete elements. Daily temperature fluctuations cause concrete to expand and contract, while seasonal changes can generate substantial movement in large concrete structures. Cold weather conditions below 40°F slow cement hydration and can lead to thermal cracking if proper protection isn’t provided.
High temperatures above 90°F accelerate chemical reactions and increase water demand, potentially compromising the quality of concrete. The reaction process becomes difficult to control under extreme heat, often resulting in rapid drying that promotes crack formation before adequate strength development occurs.
Structural and Load-Related Issues
Settlement cracking occurs when the soil beneath the concrete fails to provide uniform support. Inadequate subgrade preparation, typically involving compaction below 95% Proctor density, allows differential settlement that creates bending stresses in the concrete slab. Poor drainage can exacerbate these conditions by allowing water to weaken the supporting structures.
Overloading beyond the design capacity of 3,000-4,000 PSI compressive strength creates structural cracks that compromise the integrity of concrete structures. Applied loads that exceed design parameters can cause immediate cracking or accelerate the development of shrinkage cracks.
Essential Prevention Techniques
Mix Design Optimization
Achieving proper concrete crack prevention starts with optimizing the concrete mix design for specific project conditions. Maintaining a water-cement ratio between 0.35 and 0.45 provides the optimal balance between workability and reduced shrinkage potential. Higher ratios increase shrinkage and reduce long-term strength, while lower ratios can create placement difficulties.
Supplementary cementitious materials, such as fly ash at a 15-25% replacement rate or silica fume at a 5-10% replacement rate, significantly improve concrete performance. These materials reduce bleeding, increase long-term strength, and provide superior resistance to chemical attack. Chemical admixtures, particularly shrinkage-reducing admixtures, can decrease drying shrinkage by 25-50% while maintaining workability.
Adding synthetic microfibers at 1.5-2.0 lbs per cubic yard helps control plastic shrinkage cracks without significantly affecting the concrete properties. These fibres create a three-dimensional network that distributes stresses more evenly, though they cannot eliminate cracking entirely.
Subgrade Preparation Standards
Proper subgrade preparation provides the foundation for crack-free concrete surfaces. Achieving a minimum 95% Proctor density compaction ensures uniform support and minimizes settlement-related cracking. For commercial applications, 98% compaction may be required to handle heavier loads.
Installing vapour barriers using 10-mil polyethylene sheeting with 6-inch overlaps prevents moisture migration from below. This is particularly important for slabs on grade, where soil moisture can affect curing and create differential drying conditions. The barrier should extend beyond the slab edges and be properly sealed at penetrations.
A uniform granular base course, 4-6 inches thick, provides additional support and helps distribute loads evenly. The base material should be properly graded and compacted to prevent localized settlement. Proper drainage, with a minimum 2% slope away from structures, prevents water accumulation that could undermine support conditions.
Temperature and Weather Management
Hot Weather Concreting Protocols
Hot weather conditions above 85°F require specific protocols to prevent rapid drying and thermal cracking. Scheduling concrete placement during cooler morning hours between 6 AM and 10 AM helps avoid peak temperature conditions that accelerate moisture loss and chemical reactions.
Using chilled water or replacing up to 75% of the mix water with ice helps control the temperature of the concrete during placement. The goal is to maintain a concrete temperature between 50°F and 70°F at the time of placement to slow the hydration process and provide adequate working time for proper finishing operations.
Applying evaporation retarders immediately after screeding creates a monomolecular film that reduces moisture loss without interfering with the finishing process. Wind breaks become essential when wind speeds exceed 15 mph, as moving air dramatically increases evaporation rates and the potential for plastic shrinkage.
Cold Weather Protection Strategies
Cold weather concreting below 40°F requires heating aggregates and water to achieve concrete temperatures of 50-70°F at the time of placement. This ensures adequate strength development and prevents freeze damage during the early stages of growth. Accelerating admixtures helps achieve the initial set within 4-6 hours under cold conditions.
Covering concrete with insulated blankets maintains a minimum temperature of 40°F for the first 7 days, which is critical for achieving the target strength. Steam curing or heated enclosures may be necessary for extreme conditions. The curing period should be extended by 50% when the average daily temperature stays below 50°F.
Proper Mix Design and Water Control
Calculating exact water requirements using ACI 211.1 mix design procedures ensures optimal concrete performance while minimizing the potential for cracks. The standard test method provides guidelines for determining water content based on aggregate properties, desired slump, and environmental conditions.
High-range water reducers enable achieving a 6-8 inch slump without excess water, maintaining workability while keeping water-cement ratios low. These mid-range plasticizers allow for easier concrete placement without compromising long-term performance or increasing shrinkage potential.
Limiting the total water content to a maximum of 350 lbs per cubic yard for structural concrete helps control both plastic and drying shrinkage. Monitoring the temperature and slump of concrete every 100 cubic yards during placement ensures consistency and quality control. Concrete loads with water additions exceeding 1 gallon per cubic yard should be rejected, as they compromise strength and increase the potential for cracking.
Curing and Finishing Best Practices
Proper Timing Sequence
The concrete finishing process requires precise timing to achieve optimal results while minimizing the development of cracks. Bull floating should begin within 15 minutes after screeding completion to bring paste to the surface and close screeding marks. Waiting too long allows the surface to become too stiff for effective finishing.
Critical timing involves waiting for all bleed water to evaporate completely before beginning finishing operations. Working concrete while bleed water is present can create a weak surface layer prone to dusting and scaling. The first troweling should occur when the concrete surface can support a worker’s weight, typically 2-4 hours after placement, depending on ambient conditions.
Final troweling must be completed before the initial set occurs, usually within 4-6 hours after placement. This window’s performance varies significantly based on temperature, humidity, and the concrete mix design. Working with concrete after the initial set can create surface tears and increase the potential for cracks.
Curing Methods and Duration
Proper curing maintains moisture and temperature conditions necessary for continued cement hydration and strength development. Liquid membrane curing compounds should be applied at a rate of 1 gallon per 200 square feet of coverage immediately after finishing to prevent rapid moisture loss.
Wet curing, with continuous water application, for a minimum of 7 days, provides optimal strength development. This method requires constant attention to ensure the concrete surface remains continuously moist. Plastic sheeting can substitute for wet curing, but must be installed without air gaps that cause differential drying.
The goal is to achieve 70% of design capacity before removing protection, typically requiring 7 days at 70°F or equivalent maturity. Lower temperatures require more extended curing periods to achieve the same level of strength development.
Control Joints and Structural Considerations

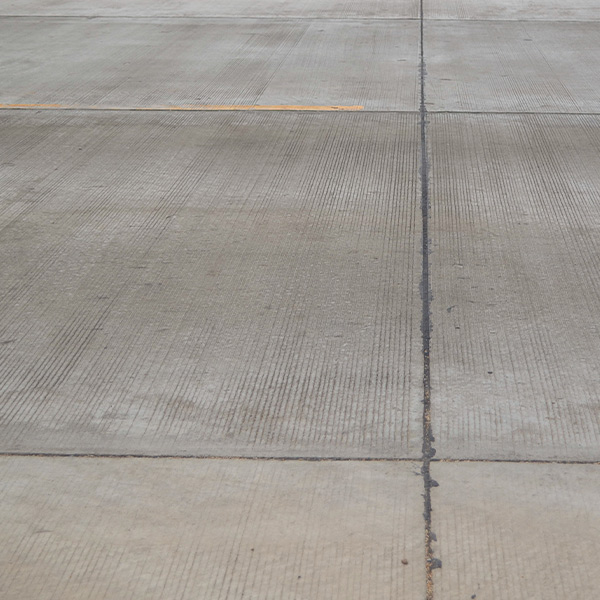

Strategic placement of control joints represents one of the most effective methods for preventing random concrete cracking. Contraction joints should be installed at a maximum spacing of 24-30 feet for interior slabs, with closer spacing in areas of high stress concentration or irregular geometry.
Joint cutting should occur at 1/4 of the slab thickness depth within 6-18 hours after finishing, when concrete has sufficient strength to prevent ravelling but before significant shrinkage stresses develop. Early cutting prevents random crack forms from developing in uncontrolled locations.
Proper joint sealants with a minimum 25% movement capability accommodate thermal movement and prevent water infiltration. The joint design must account for expected movement while maintaining load transfer where required. Formed joints using plastic or metal inserts provide an alternative to sawed joints in some applications.
Adequate concrete cover protects reinforcing steel from corrosion while ensuring proper composite action. Standard requirements specify 3 inches for slabs on grade and 1.5 inches for elevated slabs. Steel reinforcement should be positioned appropriately to control crack widths without preventing necessary movement.
Construction joints require careful planning to maintain structural integrity while accommodating construction sequences. Keyway details provide load transfer across joints while allowing controlled movement. The location and design of construction joints significantly impact the overall effectiveness of crack control.
Common Crack Types and Early Detection
Plastic Shrinkage Cracks
Plastic shrinkage cracks appear within 30 minutes to 6 hours after placement as parallel surface cracks running perpendicular to the direction of drying. These non-structural cracks typically measure 1-3 feet in length, 1-3mm in width, and occur 1-6 feet apart across the top surface of fresh concrete.
Environmental conditions creating evaporation rates exceeding 0.2 lbs/ft²/hr pose the highest risk for plastic shrinkage cracking. The combination of high temperatures, low humidity, and wind creates rapid surface drying that outpaces the replacement of bleeding water, causing the surface to crack as it contracts.
Settlement Cracks
Settlement cracks develop over reinforcing steel bars or around embedded items within the first 24 hours after placement. These cracks typically measure 1-2mm wide and follow the line of steel rebar, indicating inadequate concrete consolidation or excessive bleeding during the initial setting period.
Proper vibration techniques and appropriate concrete consistency help prevent settlement cracking by ensuring complete consolidation around reinforcement and embedded items. High-slump concrete increases bleeding and settlement potential, making proper mix design critical for preventing cracks.
Drying Shrinkage Cracks
Drying shrinkage cracks form gradually over 1-3 years as new concrete reaches moisture equilibrium with its environment. These cracks typically start at stress concentrations, such as corners, openings, or changes in section thickness, where restraint is most remarkable.
Proper joint spacing and low-shrinkage concrete mixes significantly reduce the potential for drying shrinkage cracks. Control joints provide stress relief points that prevent random cracking patterns while maintaining structural integrity.
Professional Solutions and When to Seek Help
Engaging a structural engineer becomes necessary when cracks exceed 6mm in width, show signs of active movement, or occur in critical structural elements. A professional evaluation can distinguish between cosmetic issues and structural problems that require immediate attention.
Epoxy injection provides effective structural crack repair, achieving 90% of the original strength when properly executed. This repair solution is most effective for dormant cracks in dry conditions, forming a permanent bond that is stronger than the surrounding concrete. Proper surface preparation and injection pressure are critical for success.
Polyurethane sealants provide flexibility for accommodating non-structural cracks that require movement. These materials handle thermal expansion and minor settlement without losing bond, making them ideal for control joints and non-structural surface cracks.
Extensive surface cracking covering more than 20% of the area may require a concrete overlay system to restore the appearance and protect against further deterioration. These systems can address widespread but shallow cracking while improving surface durability.
Long-term monitoring using crack gauges helps track movement patterns and determine if cracks are dormant or actively growing. This information guides repair decisions and helps prevent further deterioration through early intervention.
Civil engineering expertise becomes particularly valuable for complex projects that involve unusual loading conditions, harsh environments, or stringent structural requirements. Professional design can prevent crack problems through proper detailing and specification of appropriate construction materials.
Frequently Asked Questions
What is the acceptable crack width in residential concrete slabs?
Hairline cracks under 0.3mm are generally acceptable for aesthetic purposes and don’t typically compromise structural integrity. Cracks between 0.3 and 1.0mm may require monitoring, but they usually don’t pose immediate structural concerns. However, any crack exceeding 1.0mm should be evaluated by a professional to determine if repair is needed. Most importantly, any crack that allows water penetration requires sealing to prevent freeze-thaw damage and corrosion of reinforcement.
How long should concrete cure before removing formwork safely?
Vertical forms can typically be removed after 12-24 hours, once the concrete reaches a strength of 500-1000 PSI, which is usually sufficient for self-support. Bottom forms supporting the concrete’s weight require a minimum of 7 days’ curing at 70°F before safe removal. Beam and girder forms require 14-28 days, depending on the span length and loading conditions. Rather than relying solely on time, maturity testing provides an accurate measurement of strength development for determining the safe timing of formwork removal.
Can synthetic fibres eliminate concrete cracking?
Synthetic fibres cannot eliminate concrete cracking, but can reduce the crack width by 40-60% when used correctly. Polypropylene fibres at 1.5 lbs/yd³ primarily control plastic shrinkage cracking during the first few hours after placement. Steel fibres provide better crack control for structural applications but increase material costs by $8-15 per cubic yard. Fibres work most effectively when combined with proper mix design, adequate curing, and appropriate control joint spacing.
What environmental conditions create the highest risk for plastic shrinkage cracking?
The highest risk occurs when the air temperature exceeds 80°F, combined with wind speeds above 10 mph and a relative humidity below 50%. Direct sunlight exposure that increases concrete surface temperature above 90°F significantly compounds the problem. The combination of these factors creates evaporation rates exceeding 0.2 lbs/ft²/hr, necessitating immediate protective measures such as windbreaks, misting, or evaporation retarders to prevent plastic shrinkage cracking.
When is crack repair most effective and cost-efficient?
Crack repair is most effective when performed within 6 months of crack appearance, before water infiltration causes reinforcement corrosion or freeze-thaw damage. Spring and summer provide optimal conditions for epoxy injection and sealant application, ensuring proper curing and adhesion. Addressing structural cracks immediately prevents progressive failure and significantly higher repair costs. Early intervention typically costs $5-$ 15 per linear foot, compared to $50-$ 200 for extensive repairs after deterioration has progressed.
